Vision

Vision Panel

The Vision panel provides OCR, image analysis, object detection with bounding boxes, model training, and real-time streaming detection.

Tabs​

The Vision panel has five sub-sections accessible via a left sidebar:

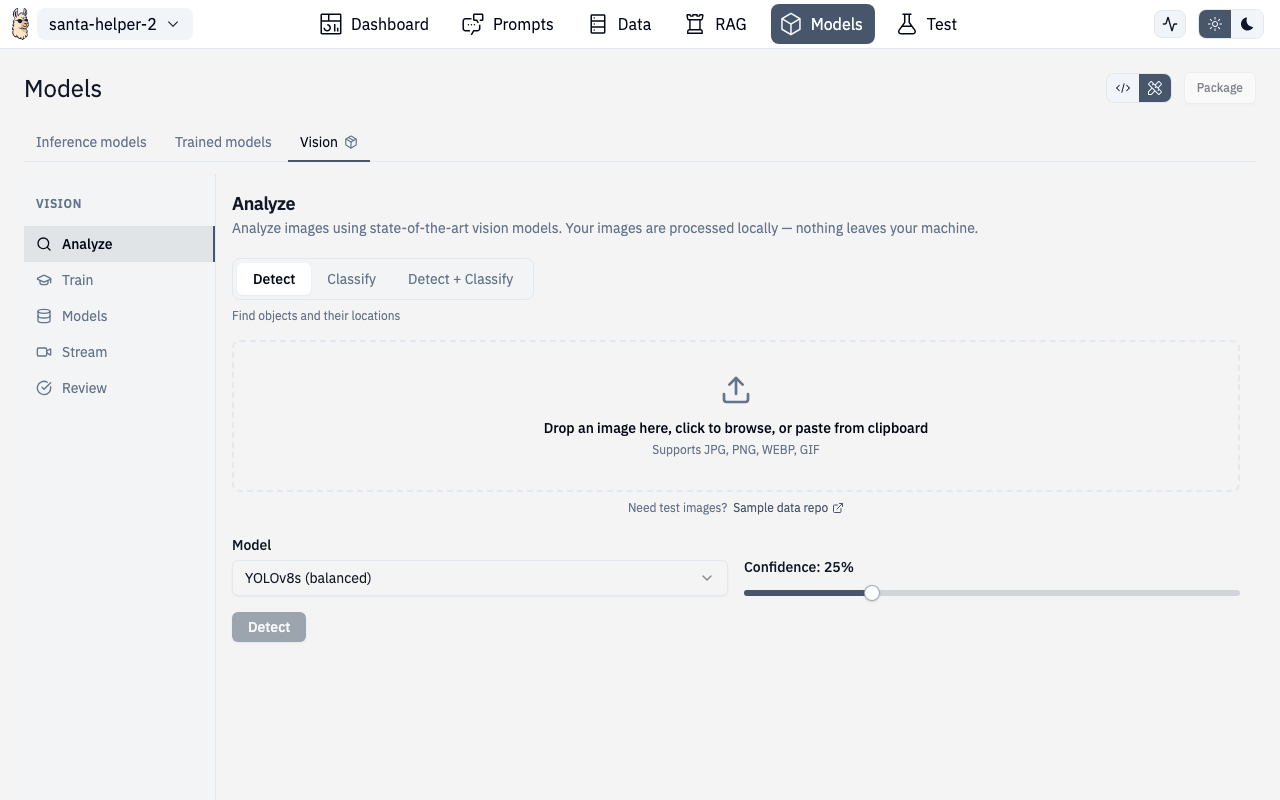

Analyze​

Upload and analyze images:

  • Drag-and-drop or click to upload images
  • Run OCR to extract text from images
  • Get image descriptions and analysis
  • View results alongside the original image

Train​

Train custom vision models:

  • Upload training images with annotations
  • Draw bounding boxes on images using the interactive canvas
  • Define object classes
  • Configure training parameters
  • Monitor training progress

Models​

Manage saved vision models:

  • View all trained models
  • Load a model for inference
  • Delete models you no longer need
  • Navigate to training to create new models

Stream​

Real-time detection using a trained model:

  • Connect to a video feed or webcam
  • Run continuous object detection
  • See bounding boxes overlaid in real-time
  • Monitor detection confidence scores

Review​

Review detection results:

  • Browse past detection runs
  • Verify accuracy of detections
  • Filter by confidence threshold
  • Export results

Bounding Box Canvas​

The interactive canvas component supports:

  • Drawing new bounding boxes by click-and-drag
  • Resizing existing boxes
  • Labeling boxes with class names
  • Zooming and panning on large images
  • Undo/redo

API Routes​

ActionMethodRoute
Detect objectsPOST/v1/vision/detect
Classify imagePOST/v1/vision/classify
Detect + ClassifyPOST/v1/vision/detect_classify
OCRPOST/v1/vision/ocr
Train modelPOST/v1/vision/train
List modelsGET/v1/vision/models

Route​

Vision is accessed through the Test page in vision mode:

/chat/test (select Vision mode)
